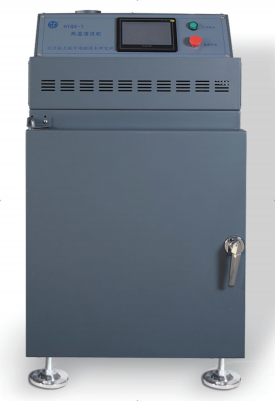

HYQX-1 High Temperature Cleaning Furnace

Product Introduction

The High Temperature Cleaning Furnace is designed for removing asphalt, polymers, and other organic residues adhered to high-temperature-resistant glass containers and metal molds. It utilizes high-temperature thermal decomposition technology to effectively eliminate residual materials from laboratory testing equipment.

Applications

Suitable for cleaning laboratory apparatus contaminated with asphalt residues, including beakers, sample containers, pycnometers, wax sample bottles, penetration test sample containers, softening point test rings, ductility molds, thin film heating sample trays, and aging oven sample trays.

This equipment must not be used for cleaning residues containing volatile, flammable, or explosive substances such as gasoline, kerosene, or dichloroethylene.

Technical Specifications

Product Features

• Large chamber capacity, capable of cleaning up to 16 thin film heating sample trays or 8 aging vessels simultaneously.
• Flexible loading capacity, allowing cleaning of six small beakers or six penetration, softening point, and ductility test molds.

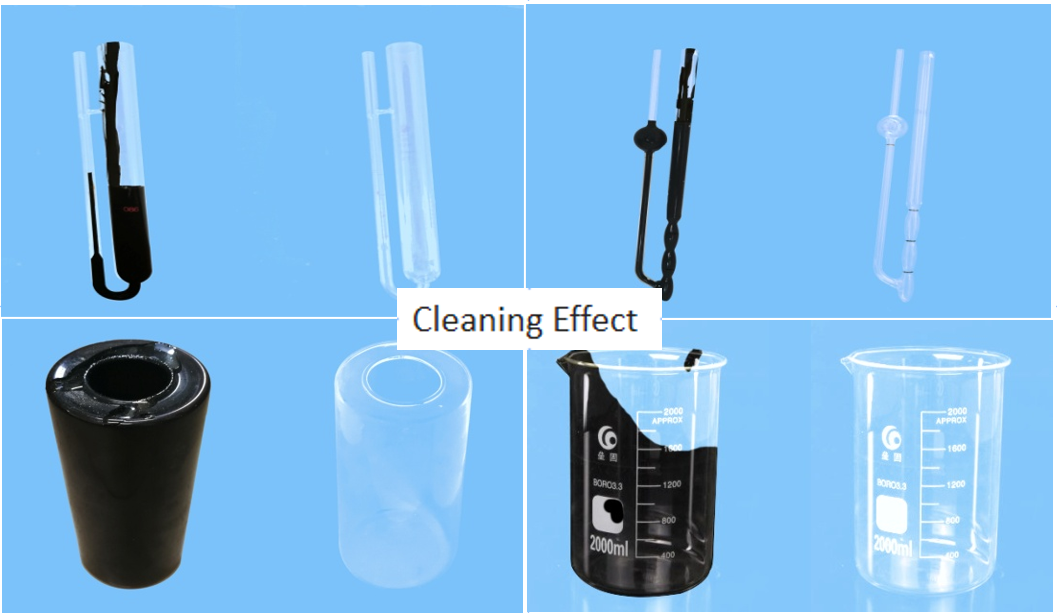

• Excellent removal performance for residual asphalt materials.
• Short cleaning cycle; most cleaning operations can be completed within approximately 2 hours.
• Utilizes aerospace-grade thermal insulation materials, providing excellent heat insulation performance and enhanced operational safety.
• Segmented heating control provides high temperature control accuracy, ensuring safe and reliable operation.
• High-temperature filtration technology is adopted for exhaust gas treatment.
• No cleaning solvents are required, providing an environmentally friendly solution and protecting operator health.
