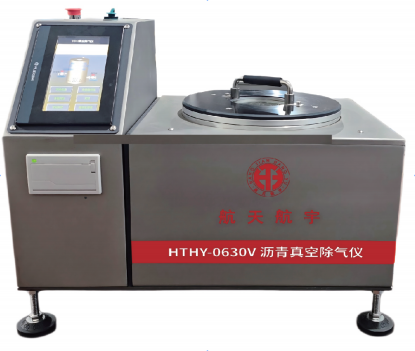

HTHY-0630P VDO Vacuum Degassing Oven for Asphalt Binder

Product Introduction

The VDO Vacuum Degassing Oven adopts advanced technology and functions by generating negative pressure through a vacuum generator. It is primarily used to remove air bubbles from asphalt binders after Pressure Aging Vessel (PAV) aging and from other material samples.

The system provides real-time monitoring of temperature and pressure and automatically stores test data. The application of advanced vacuum generation technology ensures safer, more stable, efficient, and economical operation.

Applicable Standards

Product Features

• Displays real-time temperature-time and pressure-time curves inside the chamber during operation.
• Real-time display of temperature deviation time and pressure deviation time during the process, meeting the requirements of updated standards.
• Data is recorded every 5 seconds and can be exported to a USB drive in Excel format.
• Test process data can be automatically printed after completion.

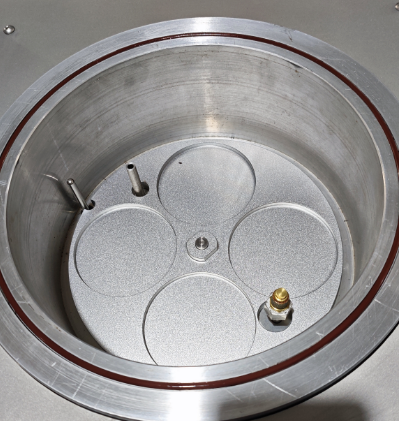

• Equipped with a transparent observation window, allowing convenient real-time monitoring, operation, and maintenance.

Technical Specifications
