Product Introduction

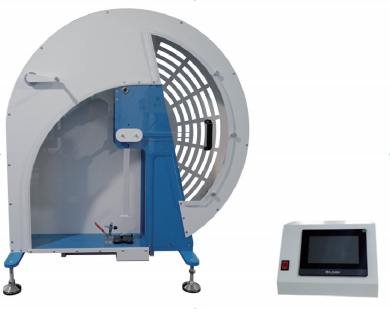

The HTHY-13588 Pendulum Cohesion Tester is designed for determining the cohesion properties of various bituminous binders. Cohesion is an important parameter for evaluating the adhesive and cohesive performance of asphalt binders.
By measuring binder cohesion under specified test conditions, the instrument provides performance data for selecting suitable binder materials according to traffic loading and field environmental conditions, supporting asphalt mixture design and binder selection.
Applicable Standard
EN 13588
Bituminous binders — Determination of cohesion of bituminous binders by pendulum test
Product Features
- Real-time pendulum angle display.

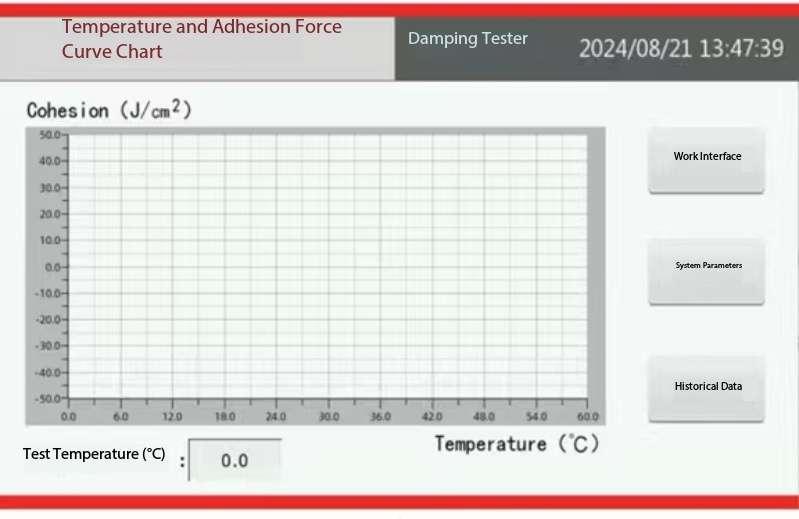

- Capable of displaying cohesion-temperature curves throughout the test process.
- Equipped with an adjustable transparent acrylic safety shield, providing operator protection while allowing convenient observation of the test process.
- Equipped with a safety braking system that enables rapid pendulum stop after impact completion.
Technical Specifications
|
English Parameter |
Specification |
|
Angular Sensor Measuring Range |
0°–360° |
|
Angular Sensor Resolution |
0.087° |
|
Pendulum Suspension Position |
4°±1° |
|
Pendulum Mass |
1925 g ±25 g |
|
Pendulum Radius |
500 mm ±1 mm |
|
Distance from Pendulum Center to Pivot Axis |
295 mm ±2 mm |
|
Power Supply |
AC220V 50Hz |
|
Power Consumption |
90 W |
|
Overall Dimensions |
1100 × 480 × 1230 mm |
|
Weight |
140 kg |
Standard Accessories
Test Molds × 36 Sets
