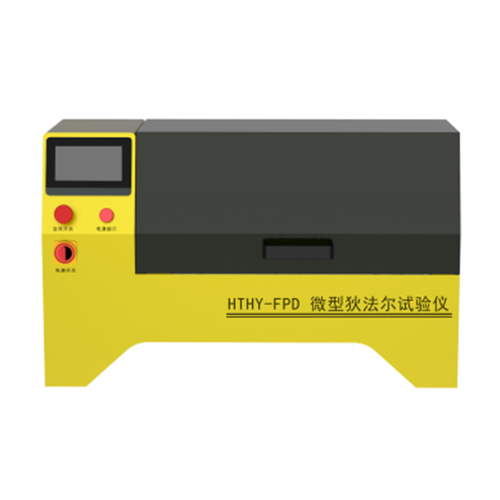

HTHY-FPD Miniature Deval Abrasion Tester

Overview

This instrument is mainly used for evaluating the high-temperature resistance and abrasion resistance of mineral fibers. The mineral fiber sample and 1250g steel balls are placed into the miniature Deval test cylinder, which rotates at a specified speed for a certain period of time. After the test, the fiber sample is collected for further performance evaluation.

The instrument can also be used for Deval abrasion tests of aggregates.

Applicable Standards

JT/T 533-2020 Appendix P

JTG E42-20xx

Technical Specifications

Features

• Equipped with a color touchscreen control system for convenient operation.
• The test cylinder speed is adjustable and can be set according to specific testing requirements.
• The instrument automatically stops after reaching the preset number of rotations or test duration.
• Built-in safety protection devices ensure safer operation.
• The inner surface of the protective cover is equipped with sound insulation material to reduce operating noise during testing.
• The test cylinder is manufactured from high-quality 304 stainless steel.
• Driven by a servo motor, the drive shaft and two supporting shafts adopt synchronous belt transmission to ensure smooth rotation of the test cylinder.
• Multiple specimens can be tested simultaneously, improving testing efficiency.
