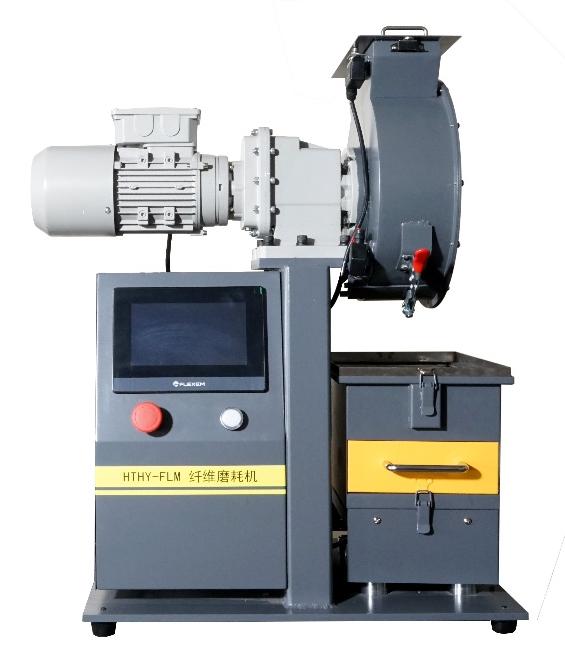

HTHY-FLM Fiber Grinding Machine

Overview

This instrument is mainly used for the grinding and sieving of granular wood fibers. The granular wood fibers are placed into the grinding system and ground for a specified period of time. After grinding, the vibration system starts automatically to perform sieving of the processed fibers.

Applicable Standard:

JT/T 533-2020

Appendix L

Features

• Color touchscreen control provides simple and convenient operation.

• Safety protection is provided for both the feeding and discharge ports.

• The motor is equipped with a braking system to enhance operational safety.

• The vibrating sieve operates stably with low noise.

• The specially designed feeding port ensures the grinding media maintains a circular shape, improving grinding efficiency and uniformity.

Technical Specifications

Grinding System

Grinding Wheel Diameter: 280mm

Grinding Wheel Thickness: 4mm

Grinding Tooth Length: 50mm

Grinding Tooth Width: 15mm

Grinding Tooth Angle: 30°

Distance Between Grinding Teeth and Chamber Wall: 48mm

Radial Clearance in Grinding Chamber: 10mm

Grinding Wheel Speed: 500rpm

Vibrating Sieving System

Sieve Aperture: 2.8mm and 4mm

Vibration Frequency: 50Hz

Vibration Amplitude: 2mm

General Specifications

Dimensions: 630×420×790mm

Weight: 100kg
